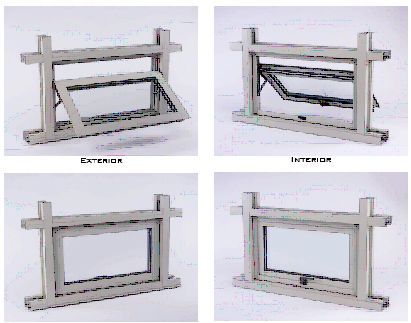

VW 3700 Project Out Vent Window

  • 3700 Series windows can be used with other Tubelite framing systems by way of special glazing pocket adapters.
  • 3700 Series windows are AP-AW rated and are constructed using durable mitered, epoxied, and crimped corners.
  • 3700 windows are built with 2" depth framing and range in size up to 3'0" x 5'0".
  • 3700 Series windows are available in standard project-out vents, concealed project-out vents, and casements.

Features:

  • ANSI/AAMA HC 60, AW60 Life Cycle Tested
  • 2-3/8" Frame Depth
  • Screw-spline Frame Joinery
  • Mitered-clip, Epoxy and Stake Joinery
  • Pour & Debridge Thermal Break
  • Field Glazing
  • EPDM Gaskets
  • 1/4 & 1 " Glass Thickness
  • Aluminum Glass Stops
  • Cast White Bronze Cam Locks
  • 4 Bar Hinges
  • Equal Frame Legs
  • Anodized & Painted Finishes
  • Optional Aluminum Screens with Frame Finished to Match Window

Click on Tubelite for PDF file of VW 3700 Out Vent Window
