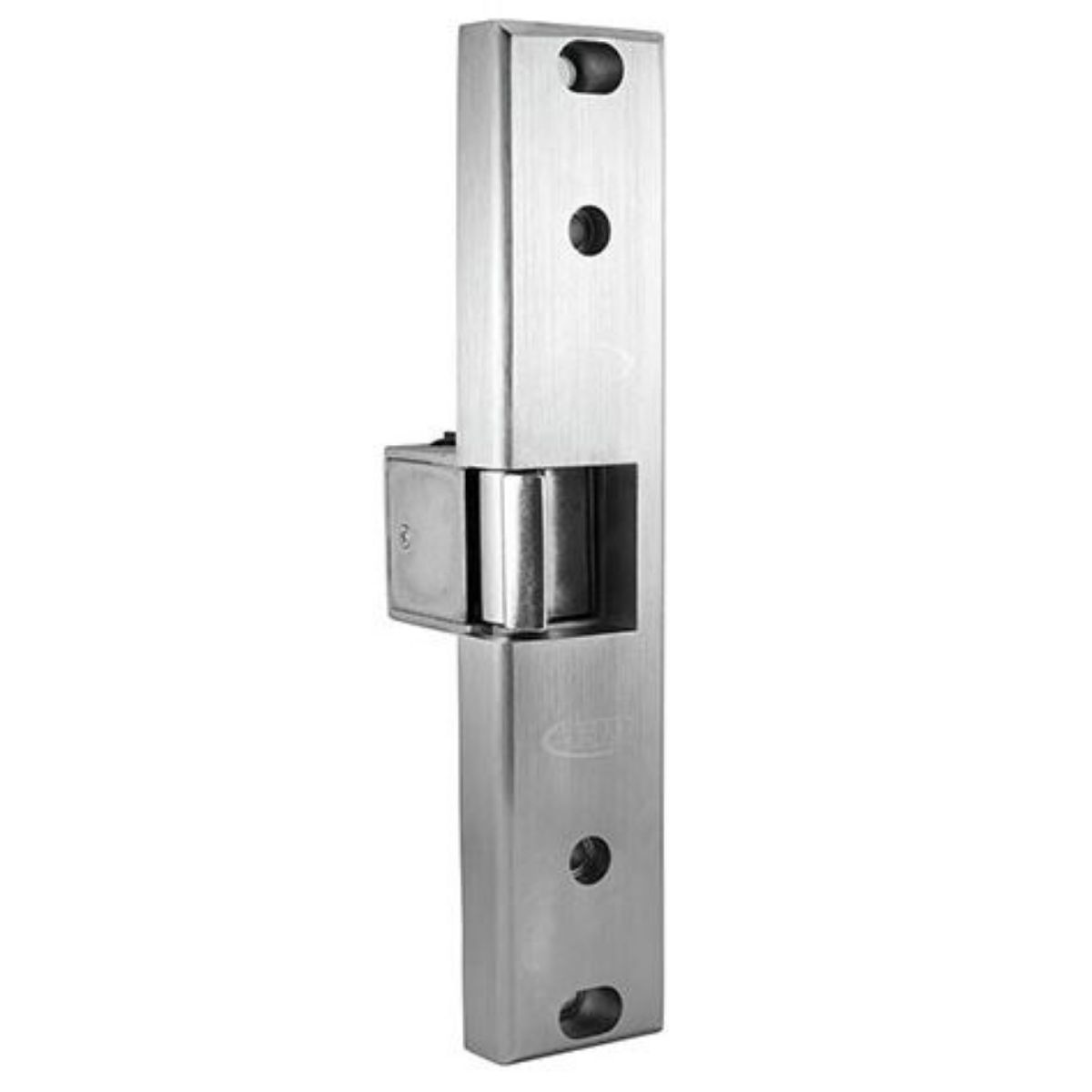

Dormakaba RCI 0161 Semi-Mortise Electric Strike
Aroyan Standard EL Strike
The Dormakaba RCI 0161 Electric Strike is a heavy-duty semi-mortise electric strike designed for use with Pullman latch rim exit devices. Engineered for commercial access control applications, the 0161 provides dependable performance while maintaining a clean, low-profile installation.
Designed to accommodate 1/2" to 3/4" latch projections, the strike features horizontal adjustment to ensure proper latch alignment and reliable operation. Its rugged stainless steel construction delivers superior strength, corrosion resistance, and an attractive architectural finish.
Note: This electric strike is available in US32D (Satin Stainless Steel) finish only.
DOWNLOADS
Data Sheet
Installation Manual
Features
- Semi-mortise electric strike
- Designed for Pullman latch rim exit devices
- Accommodates 1/2" to 3/4" latch projection
- Horizontal adjustment for precise latch alignment
- Non-handed design
- Heavy-duty stainless steel construction
- Lockdown holes for secure installation
- Ideal for commercial access control applications
Specifications
- Operating Voltage: 12 or 24 VAC/VDC
- Current Draw: 200 mA maximum at 12 VDC
- Operating Mode: Fail Secure
- Static Strength: 1,500 lbs
- Dynamic Strength: 70 ft-lbs
- Endurance: 500,000 operating cycles
- Dimensions: 1-3/4" W × 9" H × 1-5/8" D
- Finish: US32D (Brushed Stainless Steel)
