Power Supplies for First Choice MEL & EL Panic Devices
For One (1) Motorized Latch Retraction (MEL) Device
Altronix AL125UL (PSMEL1500-1) is designed to operate one (1) 24VDC Motorized Latch Retraction (MEL) panic device with a current draw of up to 1 amp.
Features:
- Supports one (1) MEL panic device
- 24VDC output
- Auxiliary power output for:
- Card readers, Keypads, REX PIR sensors, Electronic timers, Relays, Other access control accessories
Single MEL Literature
Install
For Up to Two (2) Motorized Latch Retraction (MEL) Devices
Altronix StrikeIt 4 (PSMEL2000)
is designed to operate up to two (2) 24VDC Motorized Latch Retraction (MEL) panic devices simultaneously or independently.
Features:
- Supports up to two (2) MEL panic devices
- Adjustable relock delay timer for each output
- Controls a pair of doors simultaneously or two individual doors independently
- Dedicated relay output for each lock circuit
- Delayed follower relays for automatic door operator integration
- Two auxiliary voltage outputs for access control devices
- Programmable Fire Alarm Control Panel (FACP) interface
- LED status indicators for:
- AC power, FACP status, Lock output supervision
- Intelligent short-circuit protection
Dual MEL Literature
Install
For One (1) Solenoid Electric Latch Retraction (EL) Device
Altronix StrikeIt 2
(PSEL1500)– 16 Amp Single Output Power Supply is designed specifically for solenoid-driven Electric Latch Retraction (EL) panic devices requiring high inrush current.
Features:
- Supports one (1) EL panic device
- 24VDC output
- Auxiliary power output for:
- Card readers, Keypads, REX PIR sensors, Electronic timers, Relays, Other access control devices
Single EL Literature
Install
For Up to Two (2) Solenoid Electric Latch Retraction (EL) Devices
Altronix StrikeIt 1 (PSEL3000)– 16 Amp Dual Output Power Supply is designed to operate up to two (2) 24VDC EL panic devices simultaneously or independently while handling the high inrush current demands associated with electric latch retraction hardware.
Features:
- Supports up to two (2) EL panic devices for high-current 16 amp surge capacity
- Adjustable relock delay timer for each output
- Controls a pair of doors simultaneously or independently
- Follower relay outputs for:
- Automatic door operators, External relays
- Auxiliary outputs for:
- Card readers, Keypads, REX PIR sensors, Electronic timers, Relays
- Programmable Fire Alarm Control Panel (FACP) interface
- LED indicators for:
- AC power status, FACP status, Lock output supervision
Dual EL Literature
Install

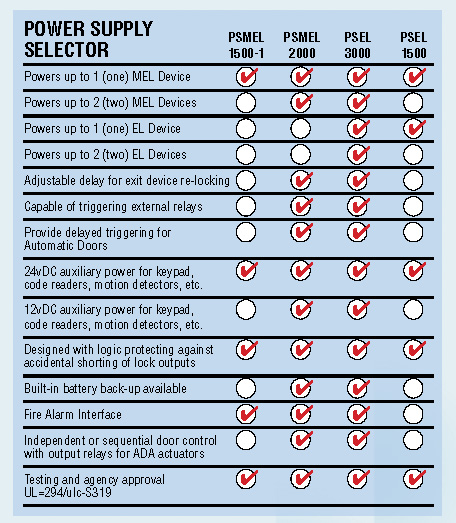

Not Sure Which Power Supply You Need?
Power Supply Selector
