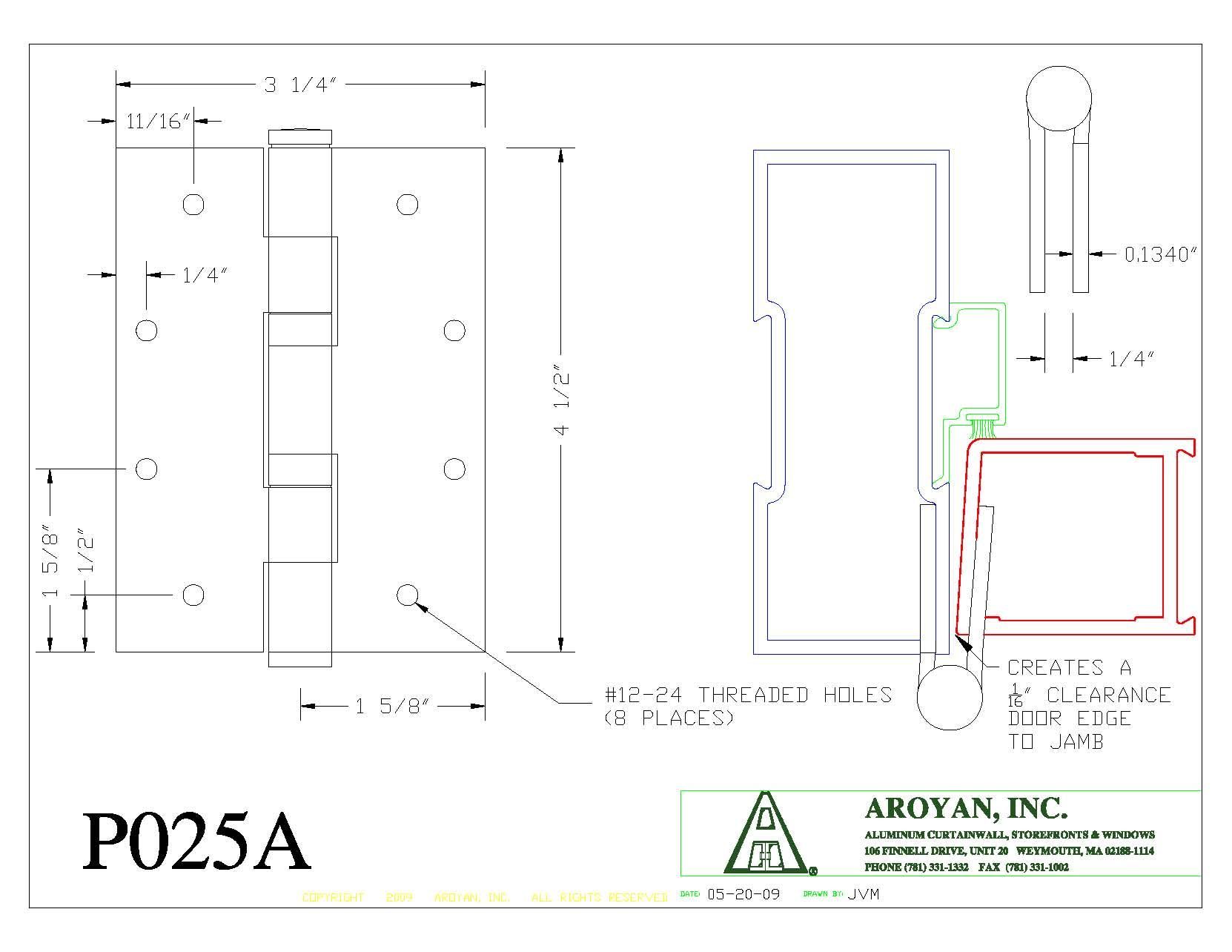

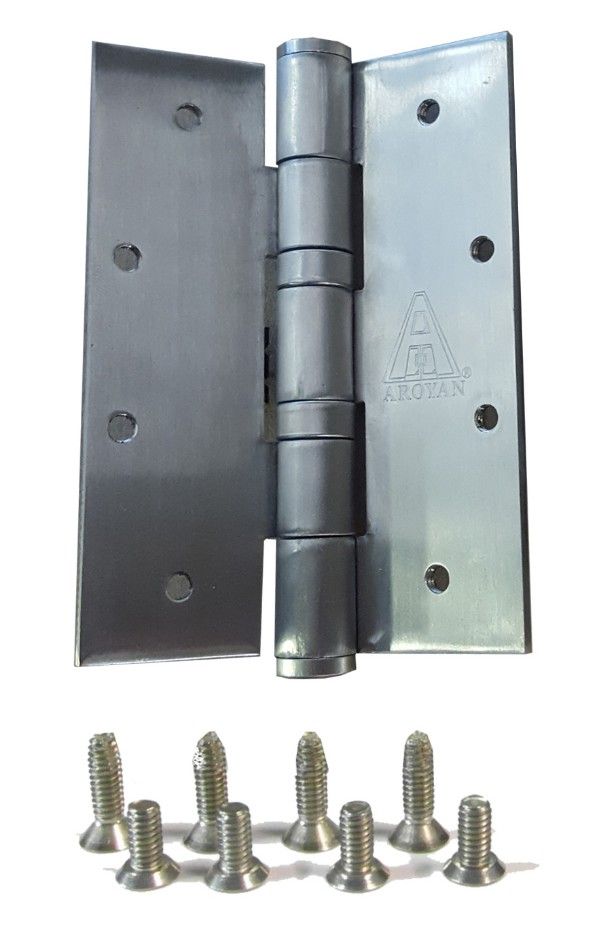

The P025A is a 3-1/4" x 4-1/2" stainless steel slotted hinge designed as a replacement for older style Tubelite door hinges.
Price is per hinge each
Hinge includes machine screws

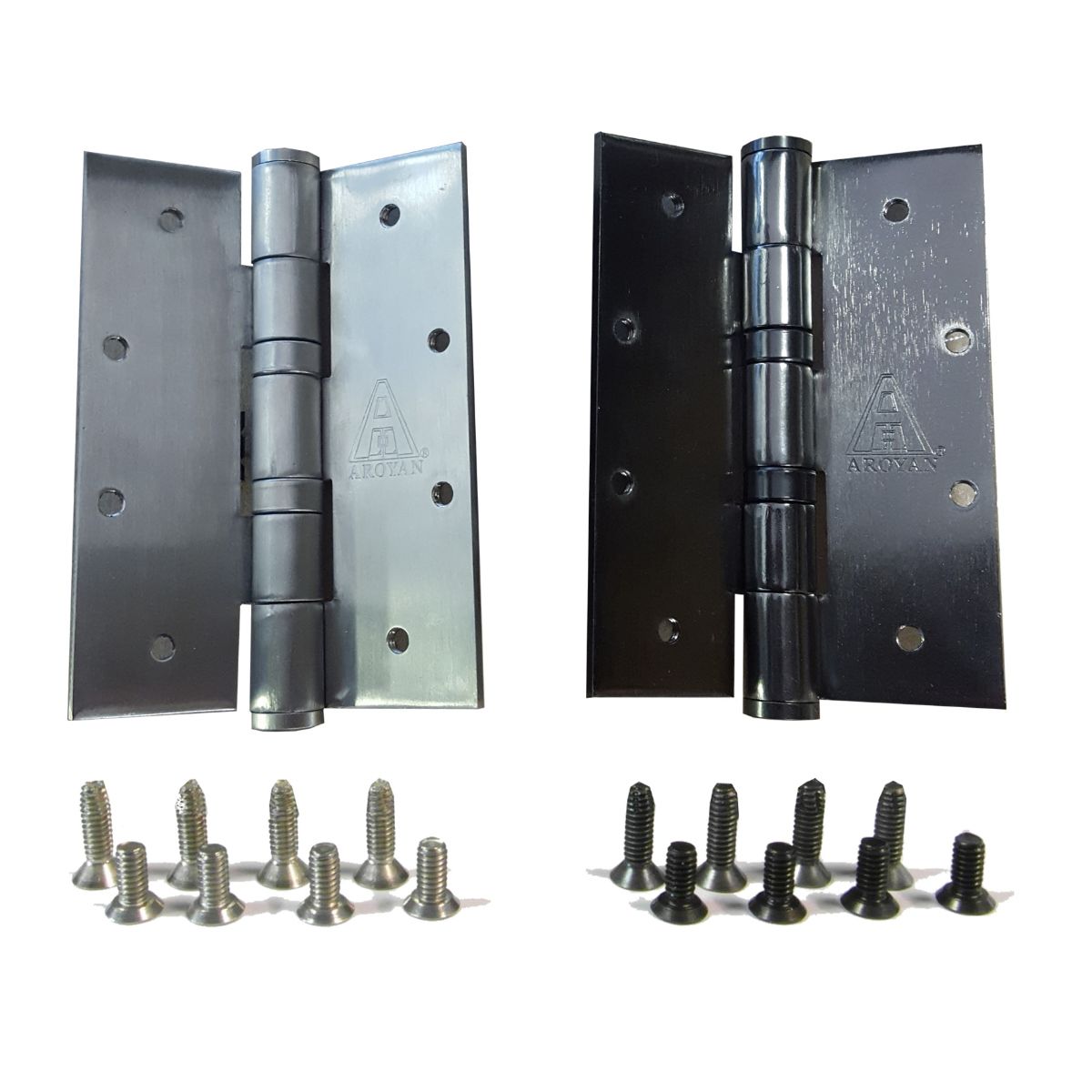

Finishes available in US32D brushed stainless steel and Black (stainless steel with oxide coating)
Constructed from durable stainless steel, the P025A is suitable for commercial aluminum storefront door applications requiring a reliable replacement hinge solution.
"Old style" Tubelite hinge design
Ball bearings for smooth and quiet operation
Five knuckle heavy duty design
For use on interior or exterior doors in hospitals, schools, hotels, churches,
Airports, apartment buildings, office buildings, etc.
Hinges have a templated threaded screw hole pattern
DOWNLOADS
P025A Cut Sheet
Short screws door side only!
Long screws frame side only!
Do not remove the (2) screws above and below the butt hinge on the frame side. These hold in the backer plate to mount the hinge to.
Please note!
These hinges have been in production for over 50 years, and due to varying tolerances over that time, you should be very careful when you screw the “Long” screws into the frame side of the hinge where the backer plate is beyond.
We suggest screwing in two screws that line up perfectly, and then running a 12-24 machine tap into the other two holes before installing screws.This process will prevent the stainless screws from shearing/breaking.
