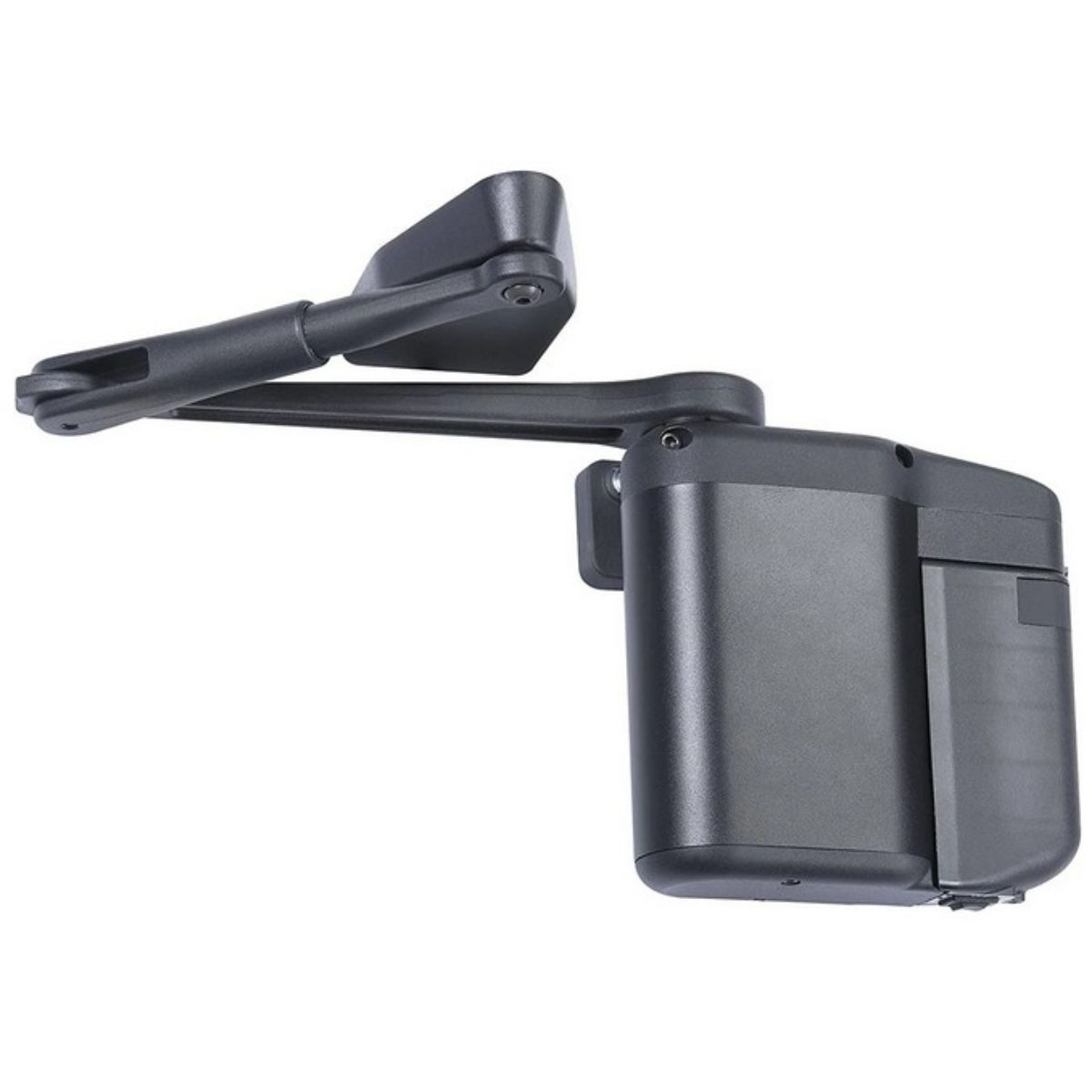

Norton 5845xNPB Door Operator (ADAEZ)
The 5800 Series ADAEZ PRO Automatic Door Operator is a low-energy automatic operator designed to provide reliable, ADA-compliant access for commercial door openings. The complete kit includes the operator, wireless activation devices, hardwire components, and mounting hardware for fast and convenient installation.
Kit Includes:
- ADAEZ PRO Automatic Door Operator
- Two narrow stile wireless weatherized RF push buttons
- Hardwire transformer kit
- Push-side and pull-side mounting hardware
Available Finishes
• 693T Black & Includes 689 Aluminum Dress Cover
DOWNLOADS
Catalog
Installation Instructions
Quick Start Guide Push
Quick Start Guide Pull
Regenerative Power System:

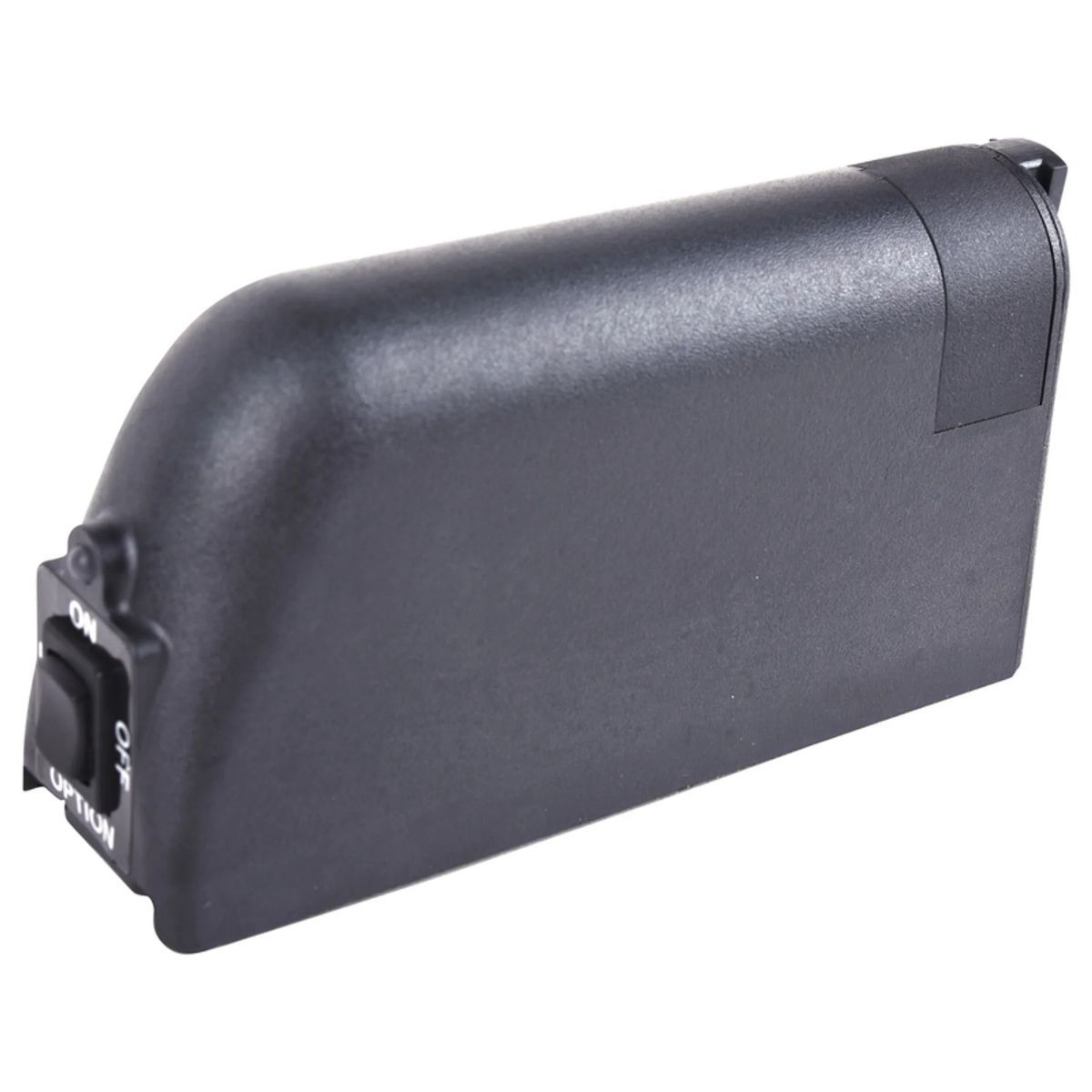

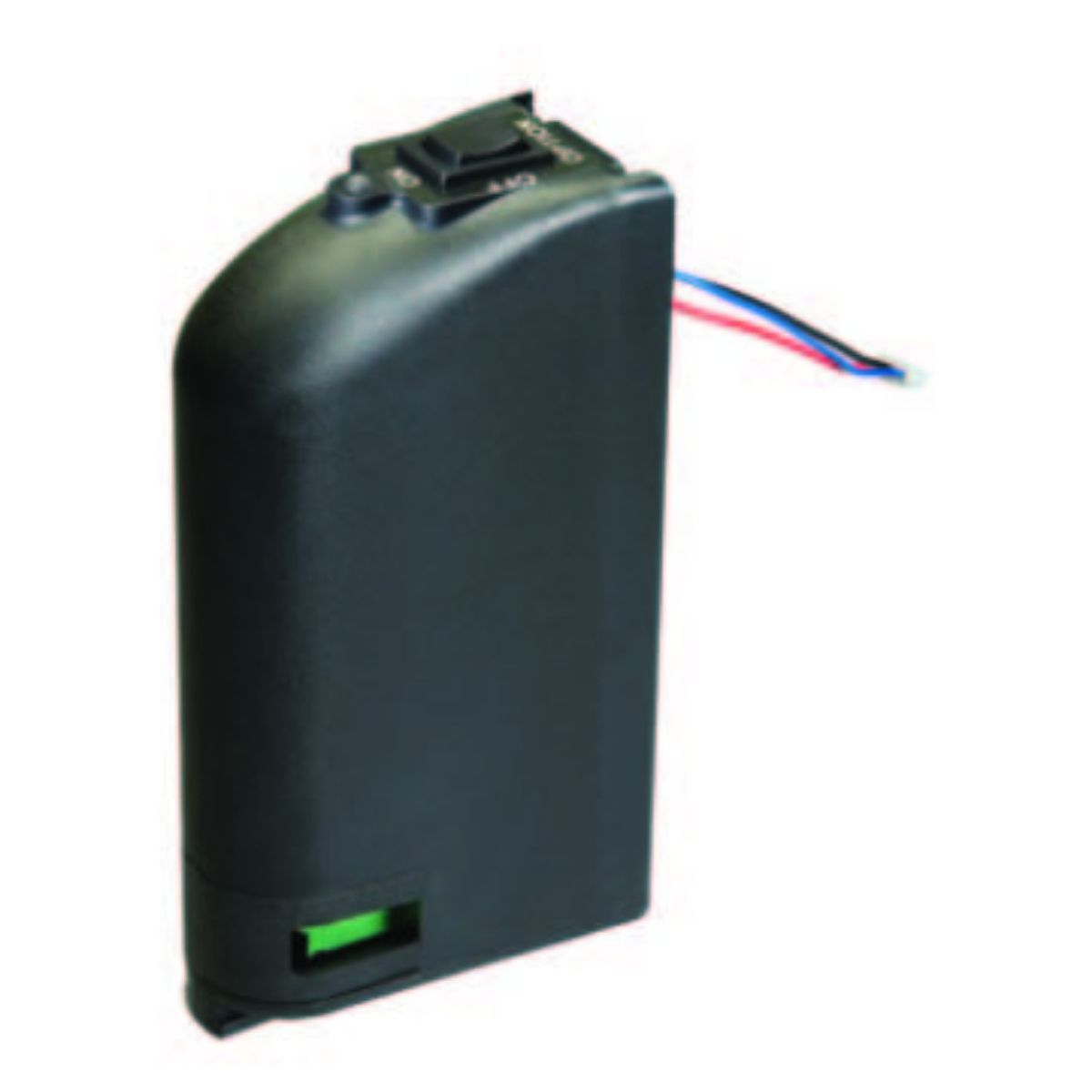

The ADAEZ PRO features an innovative regenerative power system that charges an onboard battery pack, eliminating the need to run electrical power directly to the operator in many applications. When the operator is used in automatic mode 25% of the time or less, it can generate sufficient power to maintain battery operation for up to 12 years.

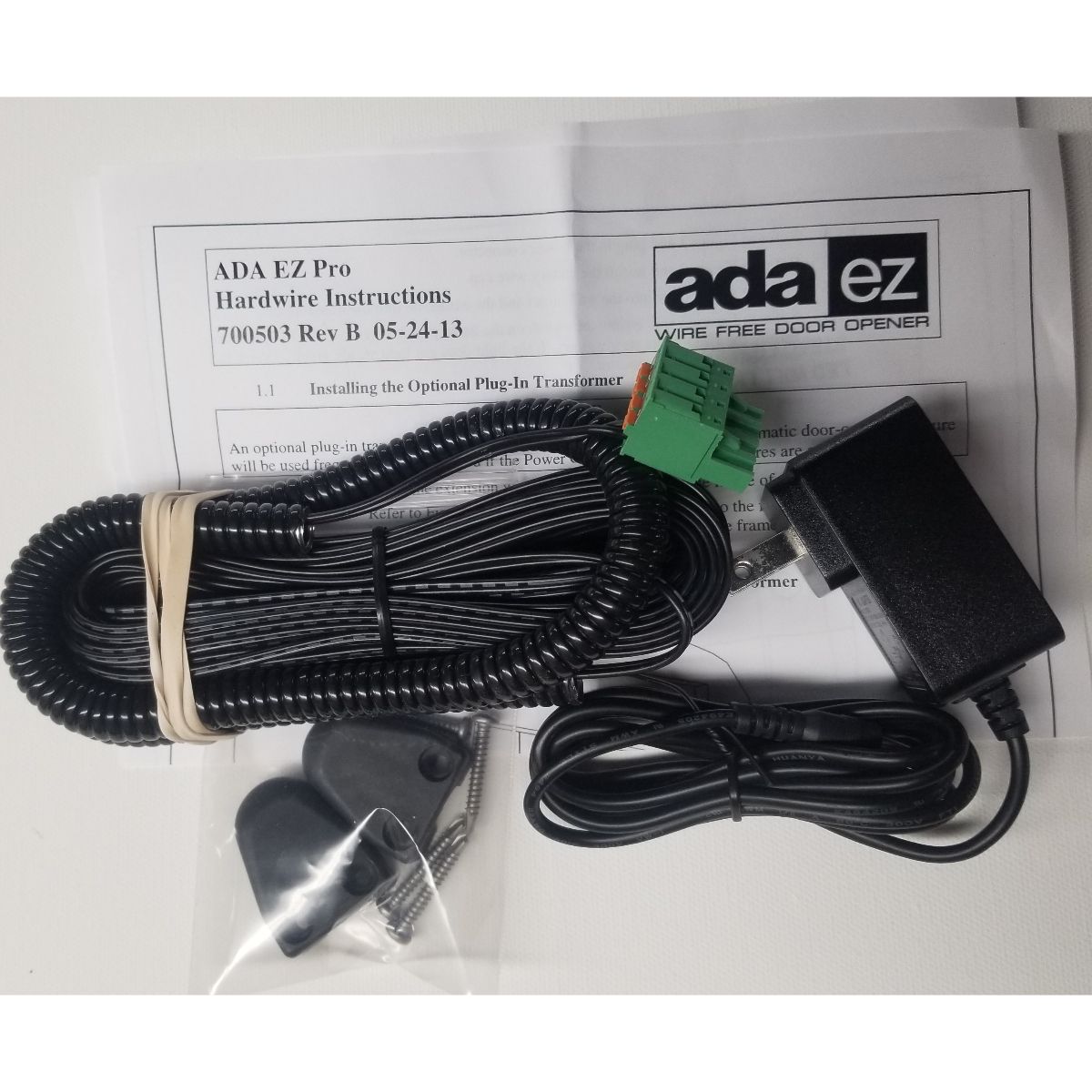

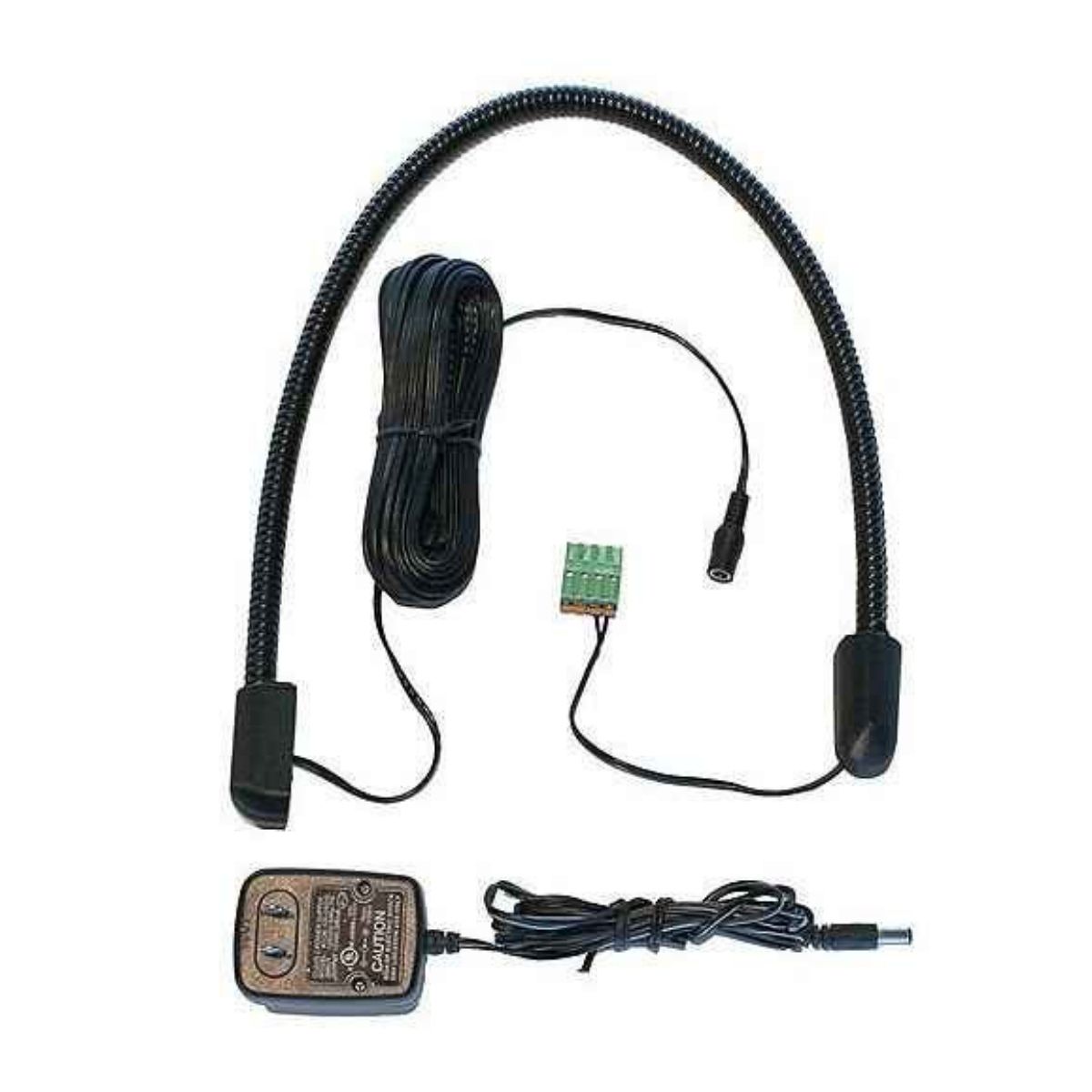

Hardwire Transformer Kit Included:
For higher-traffic applications requiring continuous-duty automatic operation, the included 24 VDC transformer kit allows the operator to be hardwired and powered directly from a standard electrical outlet.
Features:
- Two narrow stile wireless weatherized RF push buttons included
- Push button size: 1-3/4" x 4-1/2"
- Jamb-mounted activation switches
- Non-handed operator design
- Push-and-Go functionality (selectable On/Off)
- Power Close feature for consistent door latching when used with the included hardwire kit
- Built-in On/Off switch
- Maximum opening angle: 95°
- Supports doors up to 48" wide and 250 lbs.
- Meets Americans with Disabilities Act (ADA) requirements
Ideal for commercial, retail, healthcare, educational, government, and public-access buildings requiring safe, convenient, and accessible automatic door operation.
