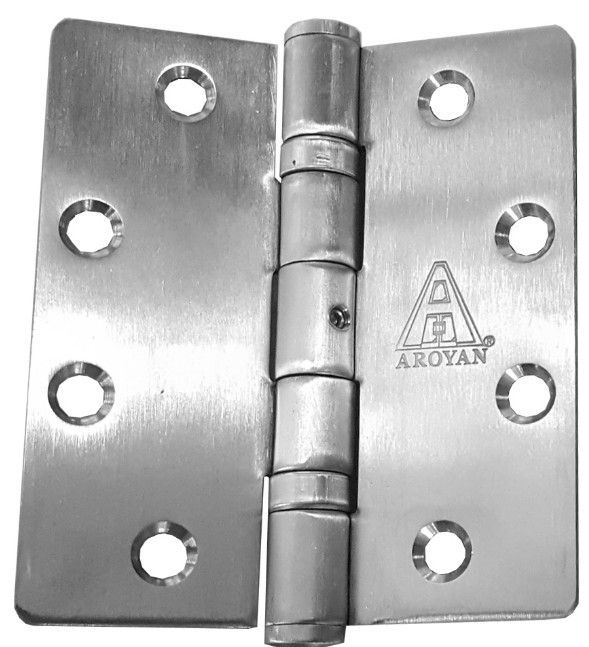

P092A Mortised Butt Hinge
Aroyan's standard butt hinge.
The P092 A is a full mortise 4-1/2" x 4" stainless steel round corner butt hinge which is zero swaged for a 1/16" clearance with a beveled stile.
Conforms to ANSI A5112 - Million Cycle Hinge.
Price is per hinge each
Hinge includes machine screws
Available Finishes
• US32D / Satin Stainless Steel
• Black (stainless steel with oxide coating)
Constructed from durable stainless steel, the P092A is suitable for commercial aluminum storefront door applications requiring a reliable replacement hinge solution.
Ball bearings for smooth and quiet operation
Five knuckle heavy duty design
Non removable pin "NRP" with hex head button tip
Round corner design
For use on interior or exterior doors in hospitals, schools, hotels, churches, Airports, apartment buildings, office buildings, etc.
Hinges have a templated threaded screw hole pattern
DOWNLOADS
P092A Cut Sheet
