Drop Angle Bracket For "Standard Stubby" Closers
This drop angle bracket is designed for use with standard "stubby" door closers when a soffit or overhead obstruction prevents proper closer installation. The bracket lowers the closer body by 3/4", providing the additional clearance needed to avoid interference with the top hinge knuckle while allowing the existing header mounting holes to be reused.
Manufactured from durable aluminum and pre-machined for standard commercial door closers, this bracket simplifies installation and eliminates the need to relocate the closer body.
Available Finishes
• Clear Anodized
• Dark bronze Anodized
DOWNLOADS
Features
- Lowers door closer body by 3/4"

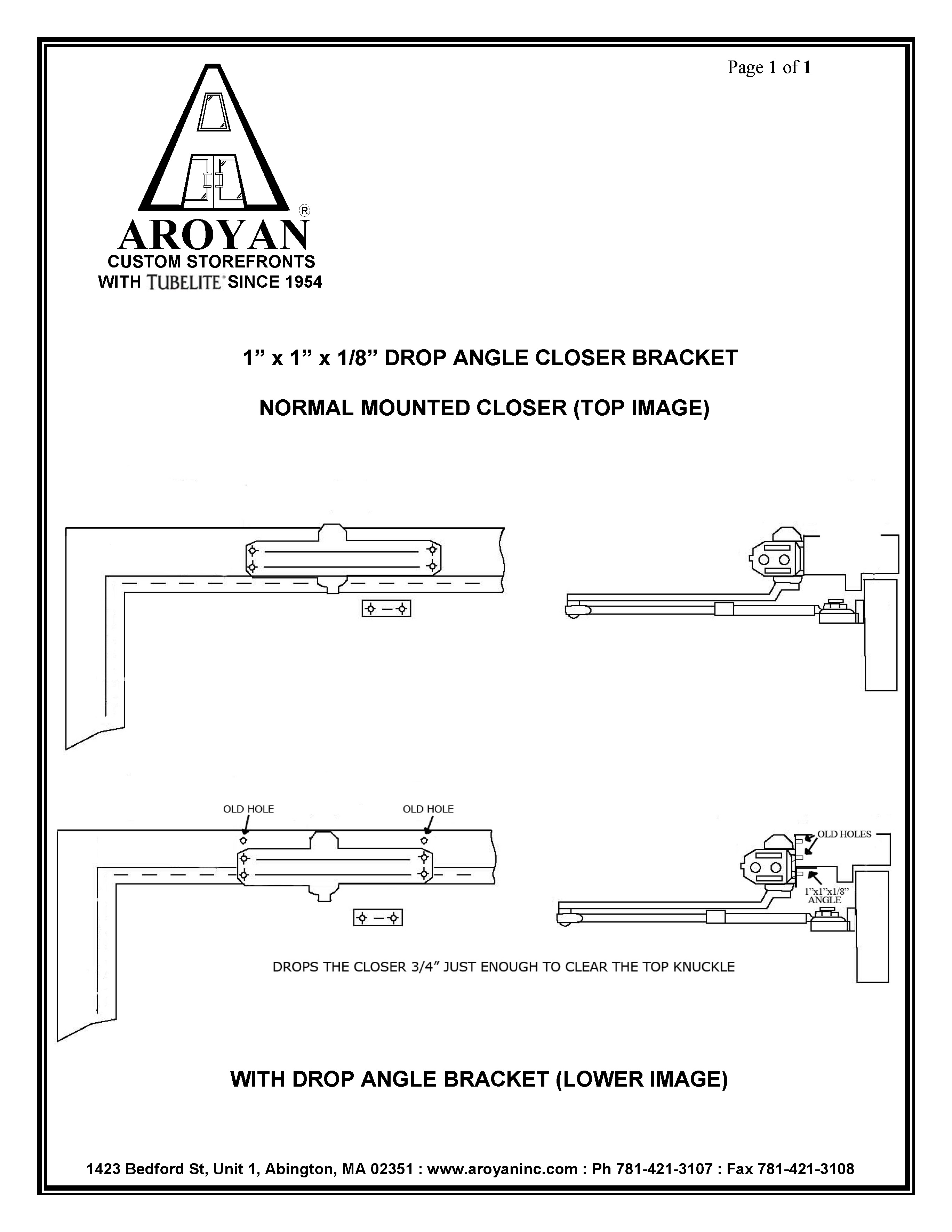

- Provides clearance for hinge knuckles and soffit conditions
- Allows reuse of existing header mounting holes
- Pre-machined for standard commercial "stubby" closers
- Durable aluminum construction
- Quick and easy installation
Specifications
- Material: Aluminum
- Angle Size: 1" x 1"
- Thickness: 1/8"
- Closer Mounting Pattern:
- 9-1/16" Horizontal CTC
- 3/4" Vertical CTC
- Drop Dimension: 3/4"
Includes
- (1) Pre-machined aluminum drop angle bracket
- (2) 12-24 x 1/2" mounting screws for attachment to the underside of the header
Applications
- Storefront doors
- Aluminum entrance systems
- Hollow metal doors
- Retrofit door closer installations
- Openings with soffits or limited header clearance
Ideal for situations where additional closer clearance is required without modifying the existing door closer mounting locations.
Example Closers To Fit This Bracket:
Norton 1601
LCN 1250 / 1260
Hager 5300
Falcon SC61
Cal-Royal 300PBF, 500PBF
Design Hardware 116
Arrow DCN314
PDQ 3100
Sargent 1131
Dormakaba/Stanley QDC311
Dorma 7300
Global TC201
TownSteel TDC-54, TDC-90
Etc.
